Maharashtra Mahakhanij BSTPL-17IS 2G AIS-140 IRNSS GPS
Govt. approved AIS-140 GPS device for vehicle tracking, RTO and mining GPS requirements.

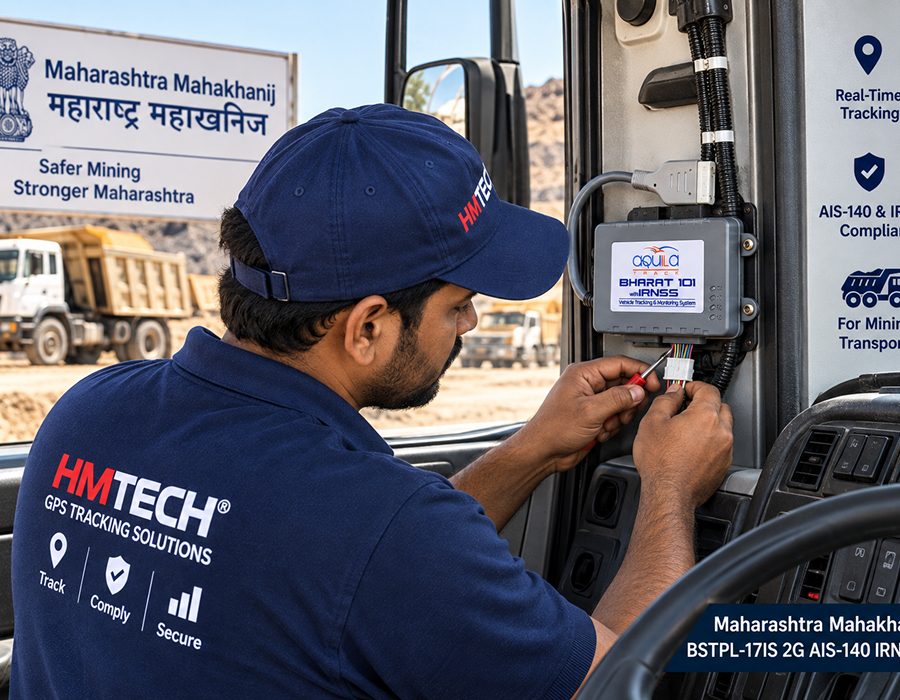

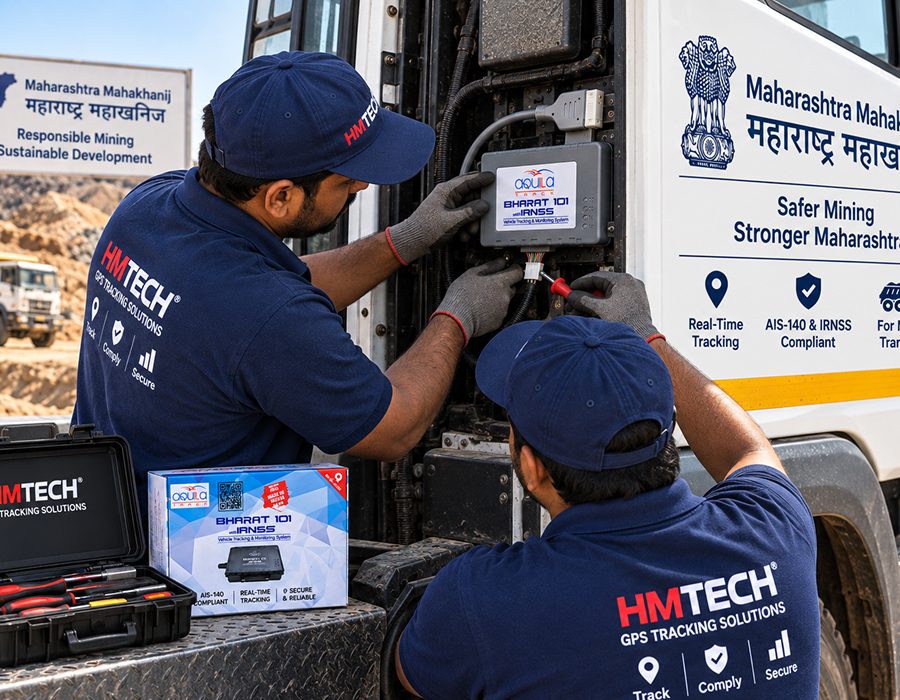

This GPS device is designed for real-time vehicle tracking, compliance-based monitoring and reliable operation in fleet and mining environments.
Maharashtra Mahakhanij BSTPL-17IS 2G AIS-140 IRNSS GPS Specifications
- Model: BSTPL-17IS
- AIS-140 Compliant Vehicle Tracking Device
- IS 16833:2018 Compliant
- Listed for Maharashtra Mahakhanij Mineral Carrying Vehicles
- GPS + IRNSS/NavIC + GLONASS Positioning
- 2G Quad-Band GSM Connectivity
- 850 / 900 / 1800 / 1900 MHz GSM Support
- High-Speed ARM Cortex Microcontroller
- 45,000 Data Packet Storage
- Expandable up to 100,000 Data Packets
- SOS / Emergency Input
- RS-232 Interfacey Input
- CAN Interface Support
- 3-Axis Accelerometer and Gyroscope
- GPS Odometer
- Box Open/Close Tamper Detection
- Ignition ON/OFF Alert
- Automatic GPRS to SMS Fallback
- SMS, TCP/IP, FTP, HTTP, HTTPS, MQTT and MQTTS Communication Support
- Embedded GSM and GNSS/IRNSS Antennas
- eSIM Support with Profile Switching
- Optional Nano SIM Support
- Position Accuracy: <3 m CEP under specified open-sky conditions
- 4 Digital Inputs
- 2 Analog Inputs
- 2 Digital Outputs
- Vehicle Battery Connect/Disconnect Alert
- Internal Battery Low Alert
- Over-Speed Alert
- Harsh Braking Alert
- Harsh Acceleration Alert
- Harsh Turning/Maneuver Alert
- 7V to 36V DC Operating Voltage
- 3.7V / 1000 mAh Internal Li-Ion Battery
- Reverse Polarity Protection
- Main Power Over-Voltage Protection
- Sleep Mode for Extended Battery Backup
- Local and OTA Configuration
- FOTA Firmware Update Support
- IP67 Nylon Enclosure
- Compact Dimensions: 118 × 77 × 31 mm
- Designed for Continuous Commercial and Mineral Vehicle Tracking
